Now you can work with the wood anywhere you want, quickly and safely, without being dependent on electricity connection.

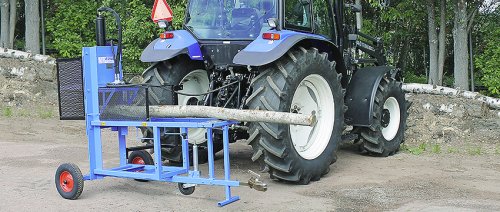

The firewood is connected to the tractor's 3-point attachment, and is connected to the tractor's hydraulics (requirements for the tractor pump: press min. 180 bar).
The firewood is integrated with a folding table so as not to protrude outside the tractor, and then facilitates the accessibility of the forest.
The firewood is put down on the support legs so that the work can be carried out at a suitable working height.
Accessories
In cases where the pressure is not sufficient on the tractor, there is a gearbox and pump that are connected directly to the power take-off to reach the correct working pressure. Contact All You Need for ordering.
Technical data:
Engine: 5.5 kW (7.5 hp)
Electrical connections: 400 V, 3-phase, 16 A
Phase user: Standard
Oil flow: 24 liters / minute
Oil pressure: 210 bar
Hydraulic oil: Viscosity 32, 17 liters
Piston / cylinder: Ø 80/100 mm
Cap speed: 4 sec. down, 2 sec. up
Pressure force: 19.5 tons
Knife: Hardox 400
Roller table length: 240cm
My wood diameter: Ø 5 mm
Max wood diameter: Ø 300 mm
Height: 205cm
Working height: 80cm
Length (in-board table): 210cm
Length of projected table: 281cm
Wide outer wheels: 120cm
Weight: 398kg
Wheels and drawers are standard |
